KEYENCE SR-2000 1D/2D Code reader:

The Keyence SR-2000 Series is a high-performance fixed-mount 1D/2D code reader designed for industrial automation. It excels in reading barcodes at long distances, over wide fields of view, and on moving objects, making it ideal for logistics, assembly lines, and quality control applications.

Technical Specifications:

• Sensor & Imaging
• Sensor Type: CMOS image sensor.
• Pixel Count: 2048 × 1536 pixels.
• Light Source: High-intensity red LED (illumination) + green LED (aiming indicator).
• Reading Capabilities
• Supported Codes:
• 2D: QR, DataMatrix, PDF417, GS1 Composite, DotCode.
• 1D: CODE39, CODE128, ITF, UPC/EAN, GS1 DataBar, and more.
• Minimum Resolution:
• 2D: 0.040 mm (QR/DataMatrix).
• 1D: 0.082 mm (CODE39).
• Reading Distance:
• SR-2000: 100–2000 mm.
• SR-2000W: 50–1000 mm.
• Field of View (FOV):
• At 800 mm: 263 × 197 mm (SR-2000).
• At 800 mm: 707 × 530 mm (SR-2000W).
• Interfaces & Communication
• Ethernet: Supports TCP/IP, Ethernet/IP, Profinet, and Keyence’s proprietary protocols.
• Serial: RS-232C (9600–115200 bps).
• USB: USB 2.0 for configuration and firmware updates.
• Control I/O:
• Inputs: 2 voltage-free inputs (NPN/PNP configurable).
• Outputs: 3 open-collector outputs (30 VDC, 50 mA max per channel).
• Electrical & Environmental
• Power Supply: 5 VDC ±10% (4.5–5.5 V).
• Current Consumption: ≤630 mA.
• Operating Temperature: 0°C to +45°C.
• Storage Temperature: -10°C to +50°C.
• Humidity: 35–95% RH (non-condensing).
• IP Rating: IP65 (dustproof and water-resistant).
• Vibration Resistance: 10–55 Hz, 1.5 mm amplitude (X/Y/Z axes).
• Mechanical & Mounting
• Dimensions: Compact form factor (exact dimensions vary by model; see CAD files for details).
• Weight: Approximately 300 grams.
• Housing: Industrial-grade polymer with IP65 sealing.
• Mounting: Fixed-mount design with optional brackets (e.g., OP-88679).

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

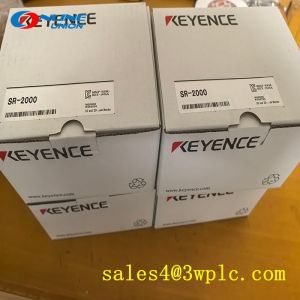

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
