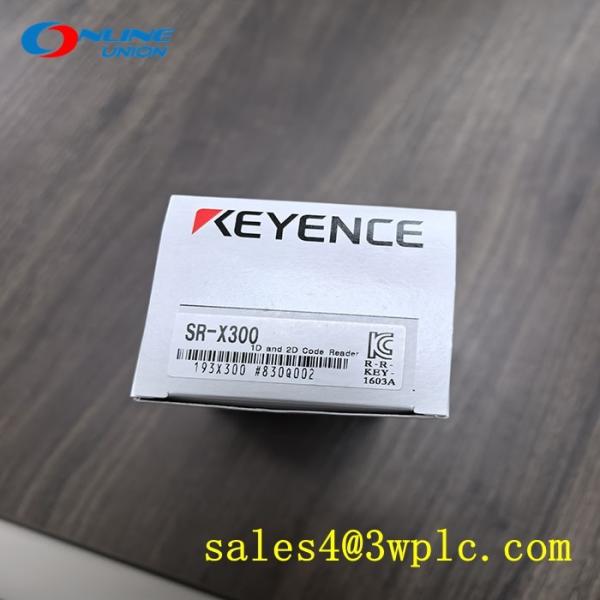

KEYENCE SR-X300 AI-Powered Code Reader:

The Keyence SR-X300 is a high-performance AI-powered fixed-mount barcode reader designed for industrial automation. It excels in reading 1D and 2D barcodes with exceptional speed and accuracy, even on damaged, low-contrast, or miniature codes. Part of Keyence’s SR-X series (nicknamed “X-Men” for their dominance in the barcode reader market), the SR-X300 combines AI-driven decoding, compact design, and robust environmental resistance to deliver reliable performance in demanding applications.

Technical Specifications:

• Imaging & Sensing
• Sensor: High-resolution CMOS image sensor (1920 × 1200 pixels).
• Lens: HDR-enabled wide-angle lens for consistent imaging across the entire field of view.
• Lighting: AI-adaptive illumination (white LED + red LED) with automatic adjustment for varying materials and surfaces.
• Reading Performance
• Supported Codes:
  • 2D: QR, DataMatrix, PDF417, DotCode, Aztec Code.
  • 1D: CODE39, CODE128, ITF, UPC/EAN, GS1 DataBar, and more.
• Minimum Resolution:
  • 2D: 0.024 mm (QR/DataMatrix).
  • 1D: 0.082 mm (CODE39).
• Reading Speed: Up to 1500 reads/second (30% faster than the SR-X100).
• Reading Distance: 70–1000 mm (adjustable via auto-focus).
• Field of View (FOV): 104 × 65 mm (at 300 mm working distance).
• Depth of Field: Extended range for reading codes on uneven surfaces.
• Interfaces & Communication
• Ethernet: 100BASE-TX, supports TCP/IP, EtherNet/IP, PROFINET, and MC protocol.
• Serial: RS-232C (600–115200 bps).
• USB: USB 2.0 High-Speed for configuration and firmware updates.
• Wireless: Optional Wi-Fi/Bluetooth for remote monitoring (via SR Web Tool).
• I/O: 2 voltage-free inputs (NPN/PNP) and 3 open-collector outputs (30 VDC, 50 mA max).
• Environmental & Mechanical
• Housing: IP65/IP67-rated (dustproof, waterproof, and oil-resistant).
• Operating Temperature: 0°C to +45°C (storage: -10°C to +50°C).
• Humidity: 35–85% RH (non-condensing).
• Vibration Resistance: 10–55 Hz, 1.5 mm amplitude (X/Y/Z axes).
• Dimensions: Ultra-compact design (72% smaller than previous models), weighing 0.8 kg.
• AI & Processing
• Decoder: AI-enhanced “SR-X Drive” algorithm with 100,000+ pre-trained image patterns.
• CPU: Multi-core processor for real-time decoding and edge computing.
• Features:
  • Auto-focus and automatic exposure control.
  • Multi-code reading (up to 10 codes per FOV).
  • Barcode quality verification and anomaly detection.
